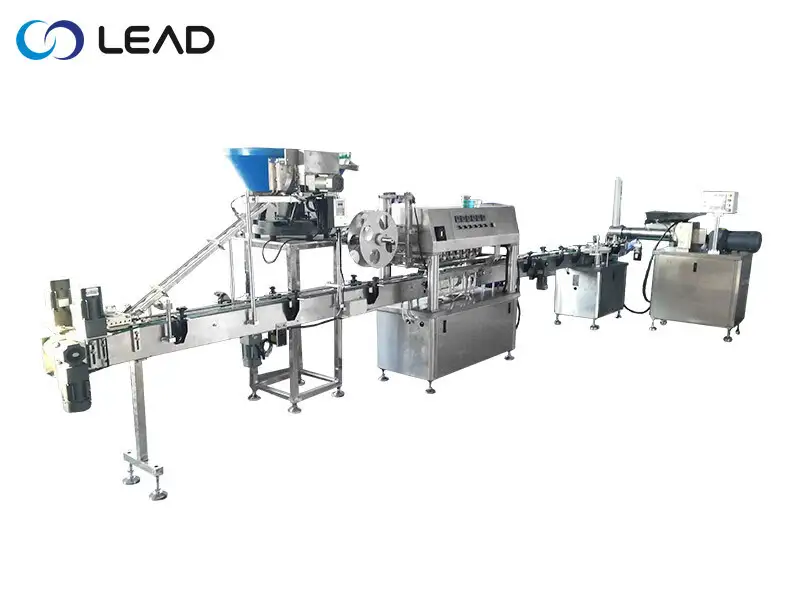

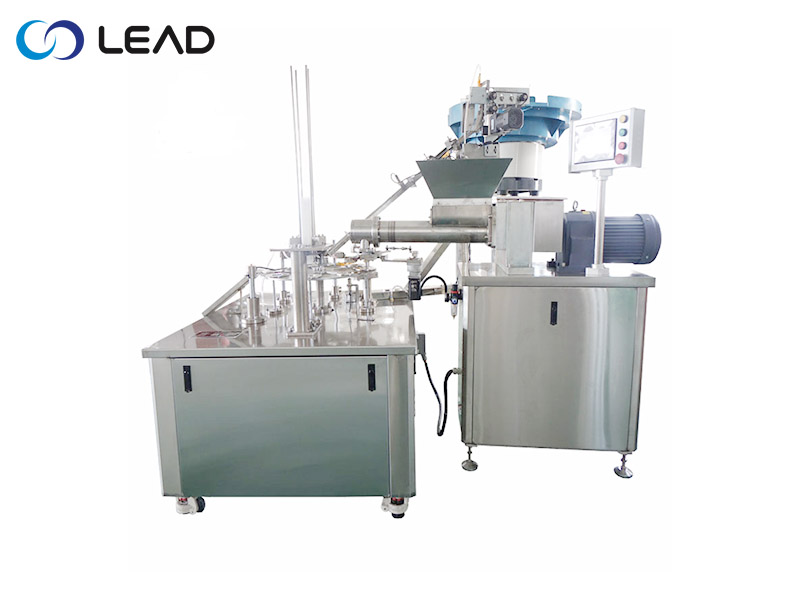

LD-CP Play dough cup packaging machine
The cup package for plasticine is very popular over the world. At present, the production and processing of the product is packaged manually, especially for cutting in fixed weight and cupping.
The package capacity is low, and big error. The high rework rate waste much labor. In order to resolve these problems, our Lead Machinery&Technology Co., Ltd.
developed a fully automatic cup packaging line. It can extrude, cup dispense, cup fill, film seal, cup cap for various plasticine.
Technical Features
1. The clay is automatical extruded&cut in preset weight, with uniform size and precise weight (error less than 5%)
2. PLC controlling system is intelligently and easy operation.
3. Automatic cup dispense system is detected by sensor. it give cup one by one.
4. The film seal system is specially for easy air dry plasticine.
5. Automatic caps dispenser can convey cap one by one.
6. Automatic capping system is available for various caps and cups.
| Mode | LD-CP80 |
| Speed | Big diameter cups 50-60cup/min Small diameter cups 70-90cup/min |
| Error | ＜5% |
| Filling precise | 60%-95% |
| Cup diameter | 40-80mm |
| Power | 4.5kw |
| Power supply | 220V or 380V |
| Weight | 1100kg |
| Dimensions | 2800*2000*1800mm |
