Wet wipe machines

这里可以自定义设置

Single wet tissue flowpack machine

B站不支持收货地址

B站不支持库存规格

Model:: LD-SWT250

MOQ:: 1 set

Payment:: L/C,T/T

Place of Origin:: Zhejiang China

Brand:: LEAD

Delivery Time:: 7 - 20 days

B站不支持优惠卷

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

该产品后台详情无内容

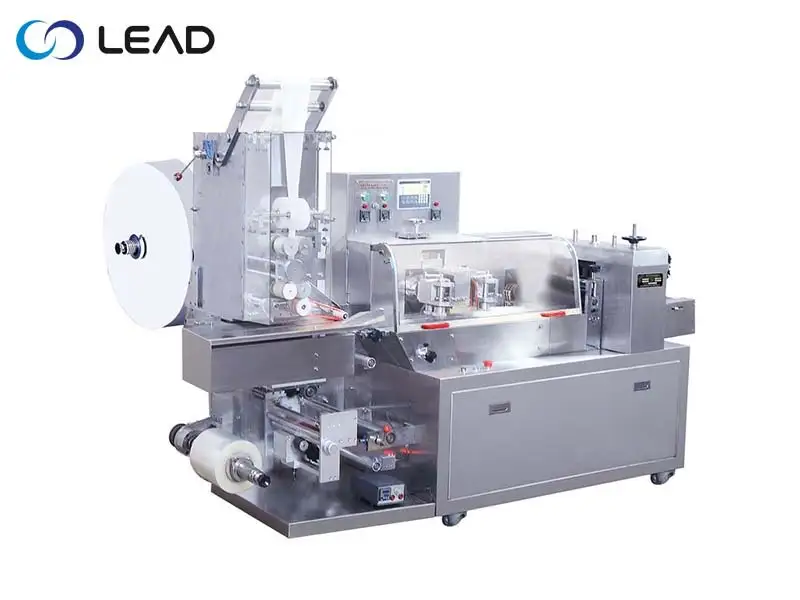

LD-SWT350 Single wet tissue packaging machine

PLC, servo motor driving system are for wipes fold and conveying, which are more intelligent and more stable., strong power, stable control operation. Panasonic brand electronic components are selected, and the layout is reasonable. Supports multiple languages and can be customized according to customers. The equipment has high output and stable product transportation. Strict quality certification

Technical Features

1. PLC, servo motor driving system are for wipes fold and conveying, which are more intelligent and more stable.

2. All the parts directly touching products are made of stainless steel 304 up to GMP and IFS.

3. The whole automatic packing machine is up to 250 bags/min.

4. The fin seal system is 4 heating wheels, which can ensure beautiful emboss sealing.

5. The pressure brush helps to leak out the air in the bag. It can save space for later bulk package.

6. Double blades system can be high speed precisely.

7. The date printer is ink roll type for 3 lines easy manufacturing date, batch No.

8. The wipe folding mold is adjustable for different width. No need to change mold.

Technical Parameter

Item	LD-SWT350 Single wet tissue packaging machine
Non woven fabric roll	Width 100-280mm, Out diameter <900mm, Density: 40-60gsm, spunlace non woven fabric
Wipe folding No.	Widthways: ‘Z’ type, 3 foldings, or ‘M’ type, 4 foldings, 3-8 foldings Lengthways: Folded in half.
Wipe size	Folded wipe: 25-80mm wide, 50-140mm long. Unfolded wipe 100100mm ~ 280280mm.
Wrapping film Material	PLA, BOPP, Paper+PE laminated
Wrapping film roll	300mm / 20-25 microns thickness
Bag-making Size	(L)100-300mm (W)40-110mm(H) 10-40mm
Packing Capacity	80-250 bpm (It depends on the wrapping film heat seal performance.)
Power	220V, AC 220V 50/60HZ, Total 2.5KW
Packaging Dimension	2.11.51.6M
Machine weight	700Kgs
