Automatic packaging machine manufacturers Lead Machinery specialized in the development and manufacture of best cutlery wrapping machine

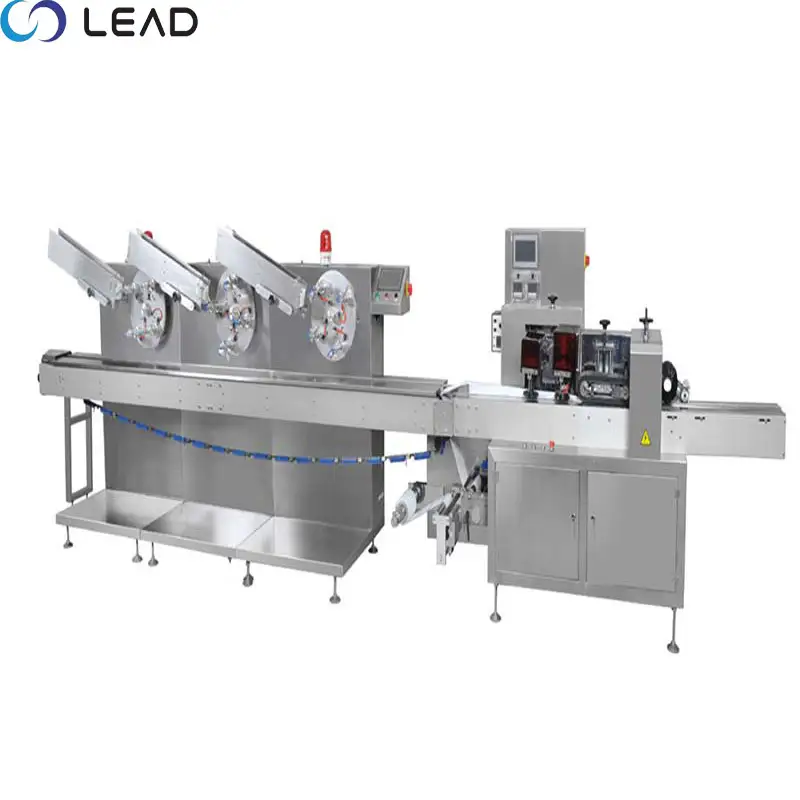

LD-FP Automatic feeding&packaging machine for tableware kit

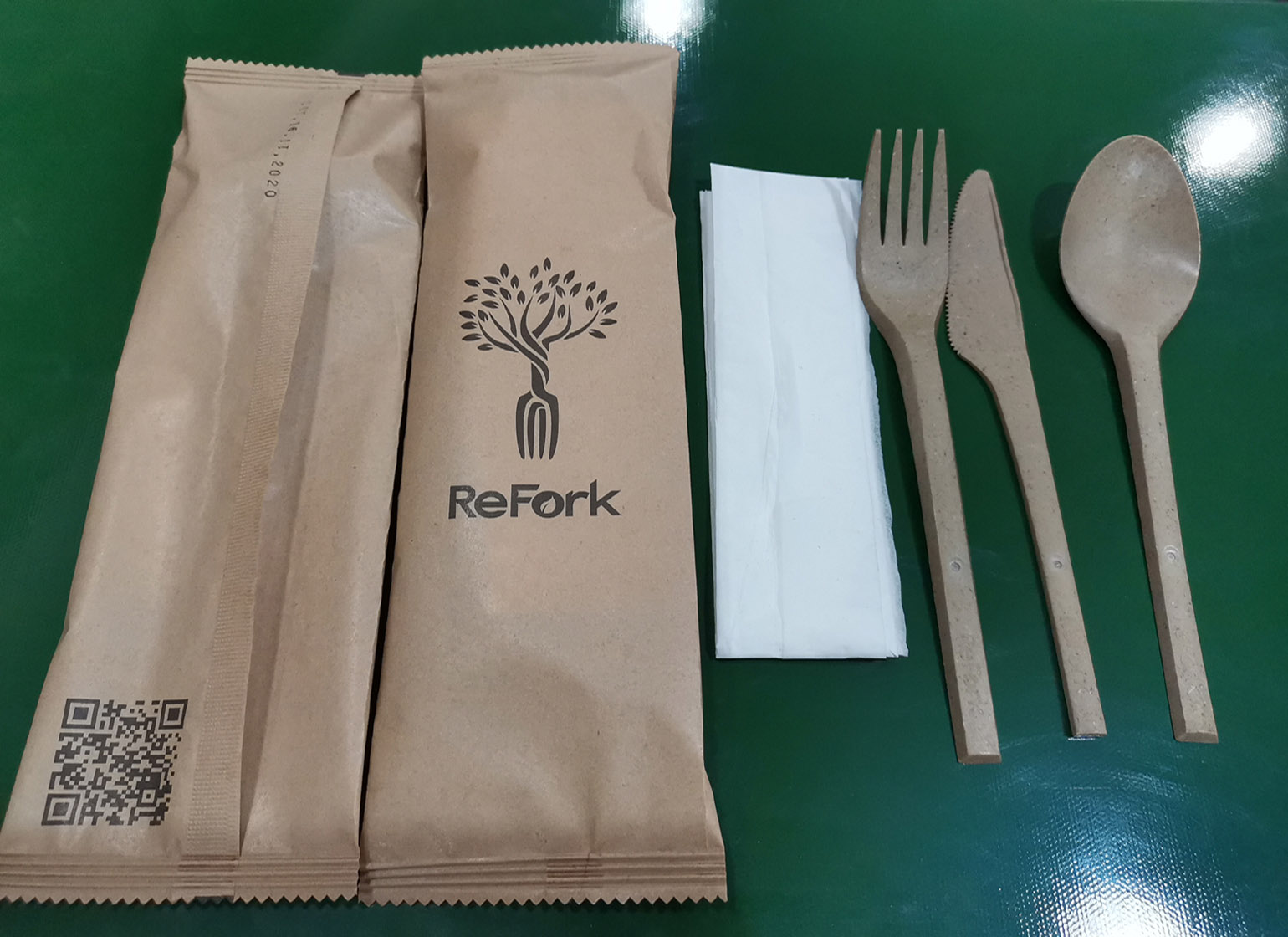

This automatic tableware package packing line is automatic feeding products and wrap in a package. It can wrap 1 to 9 products, tissue, toothpick, salt&pepper, wet tissue, straw, spoon, fork, knife, etc. Degradable tableware packaging is conducive to environmental protection, can be made of starch, PLA degradable material, paper packaging, fully recycled, environmental protection, our company is responding to the call, increasing the number of wooden tableware, degradable tableware packaging scientific research
Technical Features
1. Panasonic PLC, Delta servo motor driving system are for automatic cutlery feeder and packing machine, which are more intelligent and more stable performance.
2. All the parts directly touching products are made of stainless steel 304 up to GMP and IFS.
3. The whole automatic packing machine is up to 120 bags/min in long term stable run.
4. The automatic spoon feeding system has more stable performance and longer service life, compare to other horizontal reciprocating type feeding system.
5. The cutlery loader can be customized according to product size and shape. When the cutlery wrapping machine has little difference, they can be load on the same magazine. When big difference, you just need to change magazine.
6. The biodegradable packaging machine has special sealing system. It can make a slim air hole, which can help to leak out the air in the bag. It can save space for later bulk package.
The advantages of the tableware packaging machine:
1. Exclude part of the air in the packaging container, which can effectively prevent food from spoiling.
2, the use of barrier properties excellent packaging materials and strict sealing technology and requirements, can effectively prevent the exchange of packaging content substances, can avoid food weight loss, loss of taste, but also prevent secondary pollution.
3. The gas inside the vacuum packaging container has been eliminated, which accelerates the heat conduction, which can improve the heat sterilization efficiency and avoid the rupture of the packaging container due to the expansion of the gas during the heat sterilization.
| Item | LD-FP250 Automatic feeding and packing machine |
| Paper roll | Width 100-400mm, Out diameter<900mm, Density: single layer 23-25gsm, double layer 15-16gsm, 3 layer 14-15gsm. |
| Napkin folding No. | Widthways: ‘Z’ type, 3 foldings, or ‘M’ type, 4 foldings, 3-8 foldings Lengthways: Folded in half. |
| Napkin size | Folded 25-80mm wide, 60-200mm long. Unfolded napkin 100*100mm ~ 400*400mm. |
| Wrapping film Material | BOPP, Paper laminated film can be heat seal |
| Wrapping film roll | 300mm / 20-25 microns thickness |
| Bag-making Size | (L)60-300mm (W)30-100mm(H) 10-40mm |
| Packing Capacity | 80-120 bpm (It depends on the film heat sealable performance, cutlery feeding condition.) |
| Vacuum pump | 0.8Mpa |
| Power | Napkin folding&cutting&feeding machine 1.0Kw with embossing&printing device 1.0Kw Straw feeder 1.0KW Toothpick wrapping&feeding machine 2.5KW Auto salt feeder 1.0KW / Auto sugar feeder 1.0KW/ Salt wrapping machine 1.0Kw Spoon auto feeder 2.5KW, Fork auto feeder 2.5KW, Knife auto feeder 2.5KW Wet tissue feeding machine 1.0Kw Flow packing machine 2.5Kw, with collection conveyor 0.5KW Date printer 0.4KW AC 220V 50/60HZ, Total |
| Overall Dimension&weight | Napkin machine 1.97*1.62*2.2M G.W. 1100KGS Straw feeder 0.6*0.4*0.5M G.W. 200KGS Toothpick wrapping&feeder 1.82*0.8*1.8M G.W. 350KGS Salt/sugar feeder 1.27*0.67*1.85M G.W. 1100KGS Salt packing&rewinding machine 1.0*0.78*1.85M G.W. 250KGS 3 combined cutlery feeders(for spoon, fork, knife) 3.27*1.15*1.95M G.W. 1150KGS Wet wipes feeder 0.87*0.92*1.55M G.W. 160KGS Conveyor 3.77*0.57*0.55M G.W. 130KGS Packing machine 2.44*0.97*1.65M G.W. 750KGS |
