Cup printing&packaging machine
This printing&packaging line is special for PLA plastic cup printing and counting and packaging.

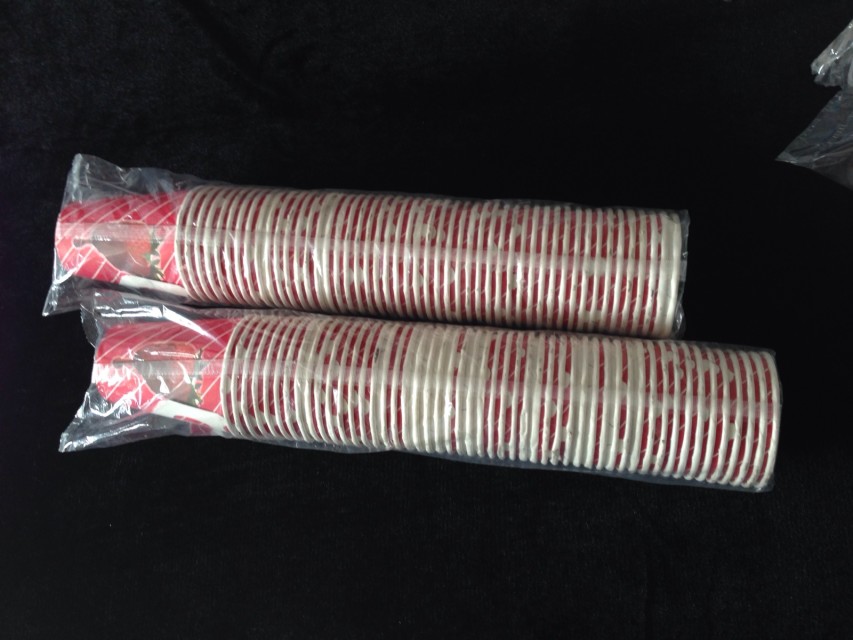

From 1 color printing to 8 color printing. 50pcs or 100pcs cups in a packaging with PE wrapping, OPP wrapping.
Technical Features
1. Automatic cups stacking and feeding.
2. Cup dispenser can be easy adjustable and operated fluently
3. Automatic detecting:Printing rollers separate automatically when lack of cup or double cups
4. The gap between roll gearbox can be automatic adjustable. It can ensure the perfect printing result.
5. The printing plate has special puncher, which can be aligned accurately, quickly and operated easily.
6. Replacement of mould core or diehead is convenient and fast
7. Automatic detecting the default cups by corona.
8. Random inspection function no need stop machine.
9. Automatic accurate counting and easy collecting printed cups.
1. Automatic driver for transfer printing rubber type.
| Model | LD-HCP160 |
| Max printing height | 160mm |
| Max cup angle of tip | 12degree |
| Max printing speed | 300-350 pcs/ min |
| Machine Dimension | 6500*2500*2550 mm |
| Cup upper diameter | Dia.50--180 mm |
| Cup body depth | 30-180mm |
| Main motor power | 7.5 kw |
| Total Power | 19 kw |
| Machine weight | About 5T |
