Bath Ball Heat Shrink Packaging Machine
B站不支持收货地址
B站不支持库存规格
Model:
LD-SW590
MOQ:
1 set
Payment:
L/C,T/T
Place of Origin:
China
Brand:
RUIAN LEAD
Delivery Time:
7 - 30 days
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享

Add success, do you want to check your shopping cart?

B站不支持产品保障

This heat shrink wrapping machine is high packing capacity, which is suitable for large capacity manufactories.The horizontal shrink wrapping machine comprises conveyor, bag former, sealing, film edge cutting&rewinding,shrink-wrapped. The electric parts are PLC, converter, touch screen, sensor, temperature controller, shrink tunnel.

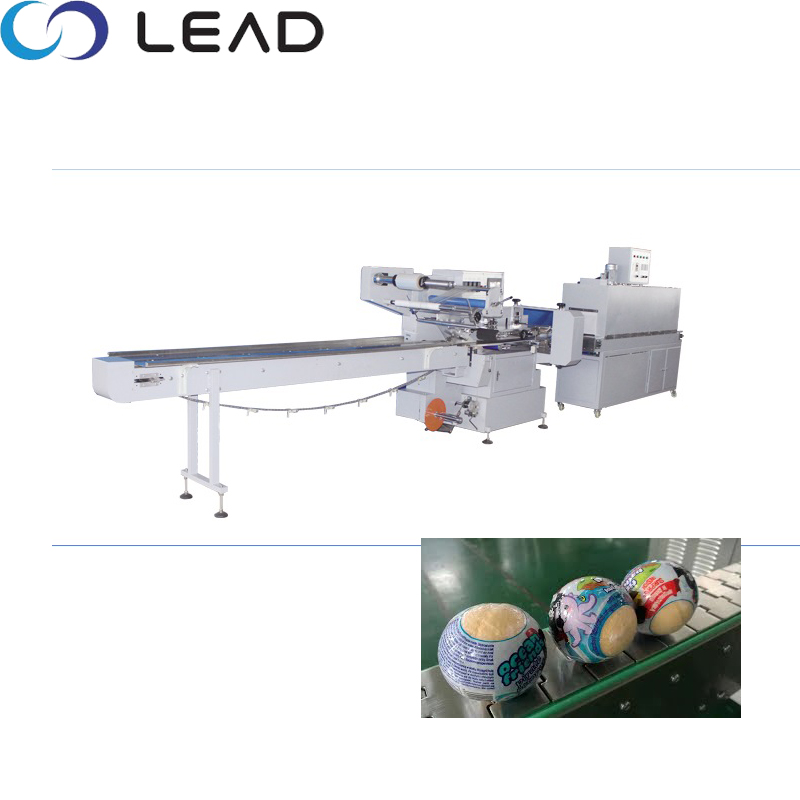

Bath Ball Heat Shrink Packaging Machine

1. High speed: It can wrap 60-120 packs/min in automatic running

2. Automatic loading, label dispenser, wrapping are all servo drive systems.

3. Save wrapping film: compare to L type shrink wrapping machine, it use small bag film and cut off less film waste.

4. Intelligent PLC controller system. packing length can be preset and cut precisely, saving time and film.

5. Safety cover for sealing and the sensor prevent cutting on the product.

6. We can customize the automatic feeder to connect synchronic with shrink wrapping machine.

7. Automatic fault detecting, which is shown on the screen,and alarm ring, machine stop.

8. The wrapping speed can be high to 100 packs/min for small size products with no longer than 200mm, If your rolls can be feeding fast enough to catch up with the wrapping system.

9. POF film is environmental friendly with transparent and clear appearance. The packing speed also depends on the sealing performance. The high shrinkage rate, the better skin wrapping result.

10. High effective shrink tunnel oven. Heat air cycle inner the tunnel is high efficient heating. Save the energy.

Technical Parameter

Subtitle Description

Film Width  <590mm
Wrapping materialPOF
Packing length H<120mm, 2*(W+H)+80<590mm
Product sizewidth:50-200mm  height:50-80mm
Wrapping film roll diameter320mm
Packaging rate60-80packs/min(with automatic feeding)
Power 220V,50HZ,4.0Kw   shrink tunnel: 380V, 50HZ, 16.5Kw
Machine size(L*W*H) wrapping unit: 4.0*1.0*1.75m   shrink tunnel:3.0*0.9*1.9m
Net WeightWrapper unit: 1000Kgs
shrink tunnel: 600Kgs
Gross weight1800Kgs
