Automatic packaging machine manufacturers Lead Machinery specialized in the development and manufacture of best cutlery wrapping machine

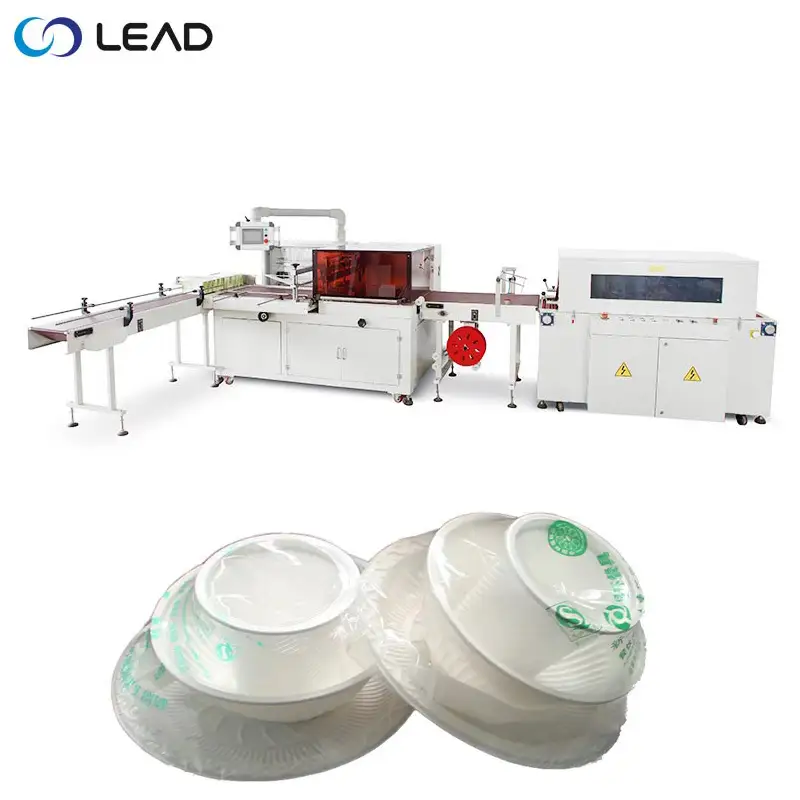

Disposable cutlery shrink wrapping machine
Heat shrink packaging machine is currently some domestic equipment that adopts the principle of air jet for shrink packaging, which is energy-saving and efficient (more than 15% energy saving). The shrinkage temperature and motor transmission speed are stable and adjustable, and the adjustment range is wide.The machine uses shrink film to wrap the product or package, and then heats it to shrink the packaging material and wrap the product tightly so that the package fully displays the appearance of the item, which is airtight, moisture-proof, and pollution-proof. And protect items from external shocks, and use a detachable upper cover to control temperature, making it easy to replace three quartz and other vulnerable parts.
Technical Features
1. Side seal can be cut continuously and uninterruptedly by constant temperature knife.
2. Horizontal seal adopts the form of constant temperature knife and lifting seal.
3. When the product size changes within the allowable range, it can be easily adjusted without changing any mould or fixture.
4. The length of the product can be automatically detected by two groups of electro-eyes in the horizontal or vertical direction. The length of the product is not limited, and the products of different lengths can be produced at the same time.
5. It is easy to operate and learn. Five groups of converters are used to control the transmission accurately.
6. Plexiglass safety door not only guarantees safety but also monitors production situation.
7. The rewinding waste edge film is controlled by separated motor. It prevent broken waste film when pulling&rewinding. And very easy to take apart the waste film roll.
8. It adopts quartz far-infrared tube heating method, which can continuously generate infrared radiation when working, and cooperate with strong wind circulation to make the temperature of the heating chamber more uniform and save electric energy at the same time.
9. The conveying part adopts a high-power DC motor, which is characterized by stepless speed regulation and high load capacity. It can work continuously for a long time, and the operation is stable and reliable.
Packaging Technical Parameters Shrink Tunnel Parameters
| Model | BF-550 | Model | BS4525N shrink tunnel | |
| Power Supply | 220V；50/60hz | Power Supply | 380v/50-60HZ/ 3Phase | |
| power | 1.35kw | power | 12KW | |
| highest speed | 20-30 packs / min. | highest speed | 20-30packs / min. | |
| Packing height | ≤150mm | Mechanical dimension | 1900×720×1350mm | |
| Packing width | ≤350mm | Shrinkage tunnel inner size | 1500×450×250mm | |
| package size | Width + Height ≤500mm Unlimited length | Main material | Carbon steel | |
| Applicable film | POF folded film、PE membrane | Weight | 130KG | |
| Platform height | 780-850mm | |||
| Air pressure | 5KG/M² | |||
| Main material | Carbon steel | |||
| Weight | 300KG |
