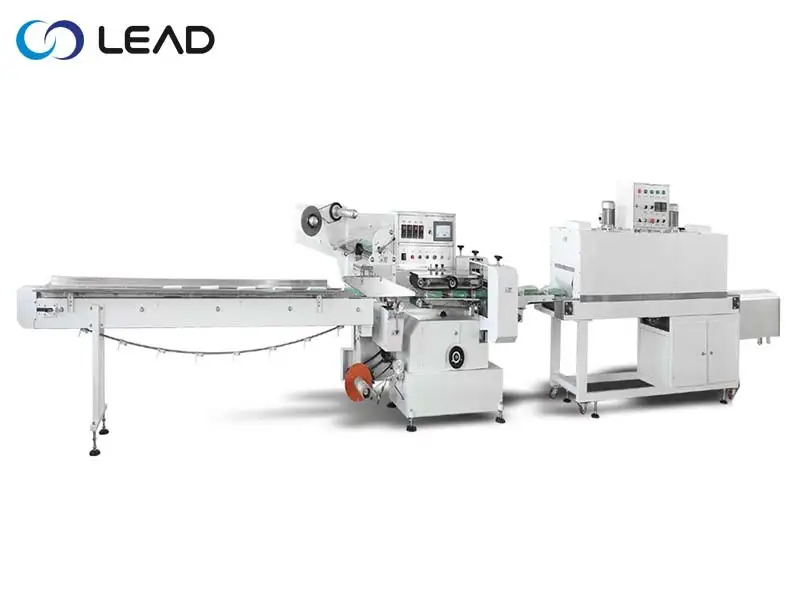

LD-HSW High speed shrink wrap machine

Intelligent PLC controller system, 3 servo motor drive system. Packing length can be preset and cut precisely.

The Benefits of a Shrink Wrap Machine:
Shrink wrapping process seals the items in a better and protective way and keeps out the dampness and the light induction during transit. This packaging process is excellent for the CDs, pharmaceutical products, and food items. A feature-packed shrink wrap machine supplied by the most reputed shrink wrapping machine factory & manufacturer can show the best performance.
Shrink wrapping is well known for being one of the low-cost wrapping or packaging solution, with the outlay for the shrink packing machinery. Polyvinyl shrink wrap films may seem to be the thinnest in the market but this doe not determine the strength of these. Having been tried as well as tested for so many years, this is the main reason that this is one of the best global packaging and wrapping solutions.t else we can do for you.Contact Lead shrink packing machine factory.

Technical Features of high speed shrink wrapping machine

1. Intelligent PLC controller system, 3 servo motor drive system. Packing length can be preset and cut precisely.

2. speed: 80-150 times/min, triple packaging capacity than traditional L-bar shrink wrapper and also higher speed than other similar machine.

3. Full wrapping: Compare to sleeve wrapping type, it can avoid staining due to expose to air.

4. POF wrapper: it’s more environmental friendly than PVC wrapper.

5. Packaging size is adjustable.

6. The automatic feeder can be customized to connect synchronic with shrink wrapping machine.

7. High effective shrink tunnel oven. Heat air cycle inner the tunnel is high efficient heating. Save the energy.

Shrink wrapping or bundle wrapping is the process of wrapping a group of items or a single product. A Shrink Wrap Machine, both automatic or semi-automatic, is used for this purpose. The application of heat shrinks and firmly conforms to the enclosed content's shape.

The three main wraps used in shrink packaging material for protecting and securing products for the retail and shipping environments are polyvinyl chloride (PVC), polyethylene (PE), and polyolefin (POF). Each has different capabilities and characteristics that make them suitable for specific applications.

Technical Parameter

Wrapping roll	Width: Max.590mm Dia. 320mm
Wrapping material	POF
Packing size	H<120mm, 2*(W+H)+80<590mm
Automatic feeder&label dispense	Can be customized
Packaging rate	80-150 bags/min(Only for small products like battery)
Power	wrapper unit: 220V，50HZ，3.6Kw shrink tunnel: 380V, 50HZ, 16.5Kw
Machine size(LWH)	wrapping unit: 5.0m X1.0m X1.75m (8.75CBM) shrink tunnel: 2.5m X 0.6m X1.7m (2.55CBM)
Total package volume	11.3CBM
Net Weight	Wrapper unit: 1000Kgs shrink tunnel: 600Kgs
Gross weight	1800Kgs

Product Application

The application of heat shrinks and firmly conforms to the enclosed content’s shape. Shrink wrapping or packaging is established considering the enhanced packaging price and for reducing the rate of secondary packaging.

Applications of high speed shrink wrapping machine: Pet food dog roll wrap, Paint pens markers package, Bath bomb shrink wrap, Aluminum foil roll package, Garbage bag roll high speed shrink wrapper and Kitchen Cleaning Towel pack machine.
