Disposable cup printing machine

Disposable cup printing machine

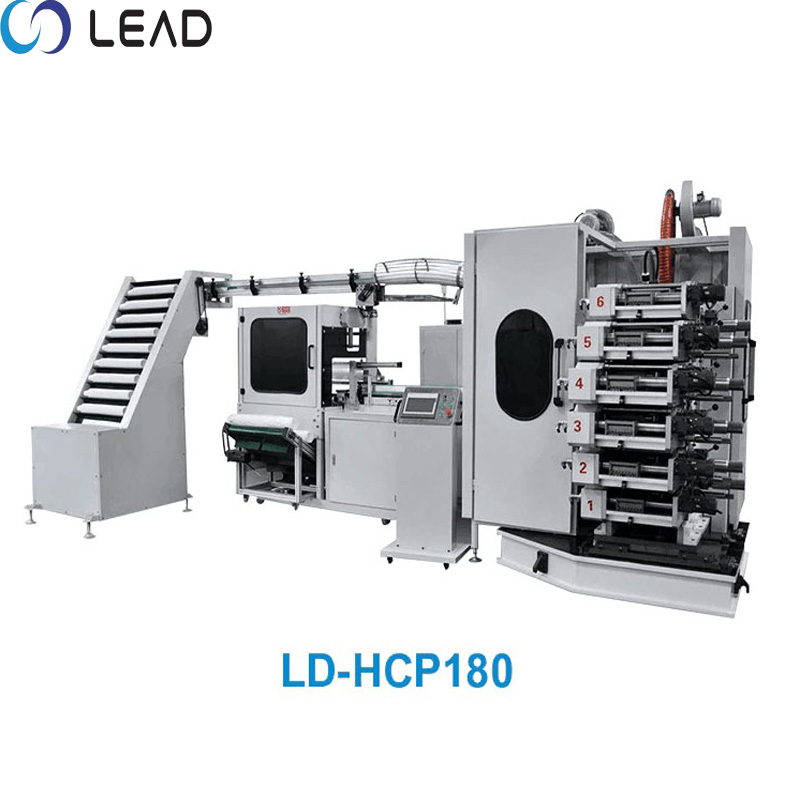

This machine adopts a curved surface offset printing machine integrated cup feeding and receiving device, including: main frame, cup feeding module, cup mold assembly, cup receiving module, packaging module and control unit; cup feeding module includes lifting tower cup holder assembly, cup feeding module Conveyor assembly and sub-cup assembly, lifting tower cup holder assembly to lift stacked multiple cups to be printed; sub-cup assembly separates multiple cups; multiple mold heads of cup mold assembly lift the separated cups; The cup collection module stacks the set number of cups after printing to form a cup group; the packaging film conveying component of the packaging module sends the packaging film to the second transmission belt of the packaging component; the packaging component of the packaging module wraps the packaging film into the cup group and packaging; the control unit controls the coordinated action of the cup feeding module, cup mold assembly, cup receiving module and packaging module. The integrated cup feeding and collecting device can ensure that the cup feeding station and the cup collecting station are in the same area, and the automatic operation coordinated with the printing speed can be realized through the control of the servo motor

Technical characteristics

1. Automatically convey cups, easy to operate, safe and sanitary, and reduce labor
2. The cup divider is easy to adjust and the cup divides smoothly
3. The printing roller is automatically separated in the state of no cup and double cup
4. The plate roller gear is automatically adjusted away from the gap, and the printing cup has no shadow
5. There is a special punching machine on the printing plate, which is accurate, fast and easy to operate.
6. It is convenient and fast to replace the mold core and cup film
7. Corona check damage function
8. Sampling inspection function for printed cups during work

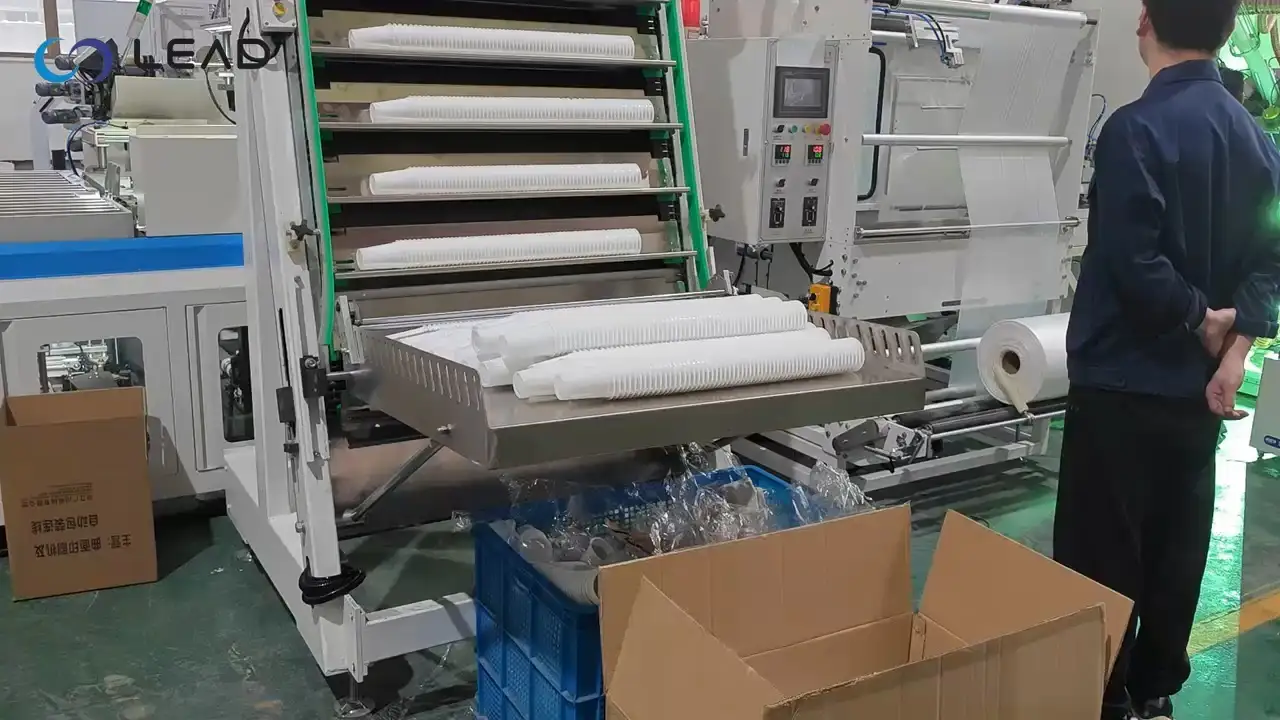

9. The automatic counting is accurate, and the cup receiving operation is convenient
10. Can be automatically packed
11. Can automatically drive the transfer rubber mode

technical parameter

Subtitle Description

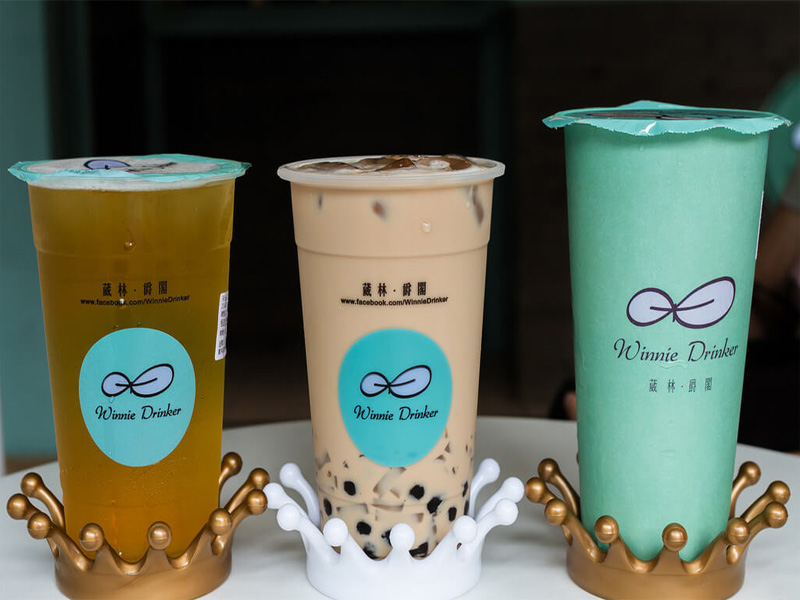

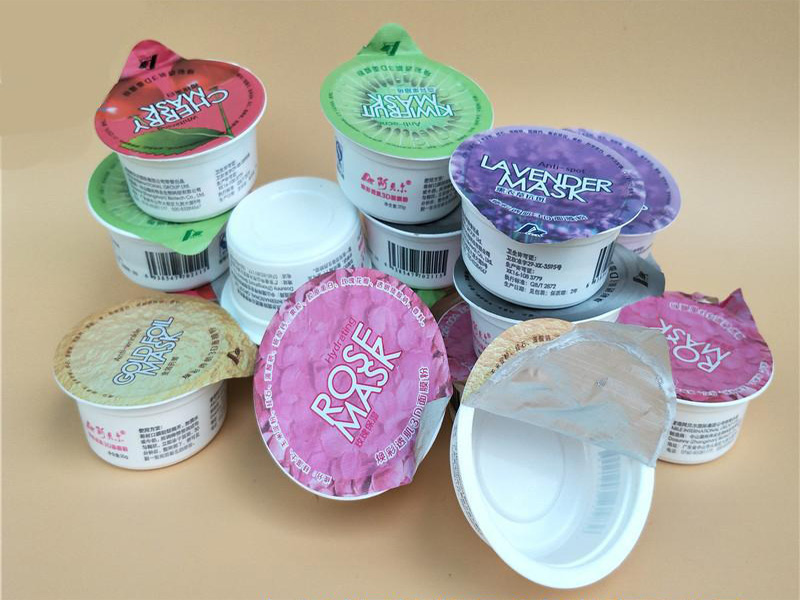

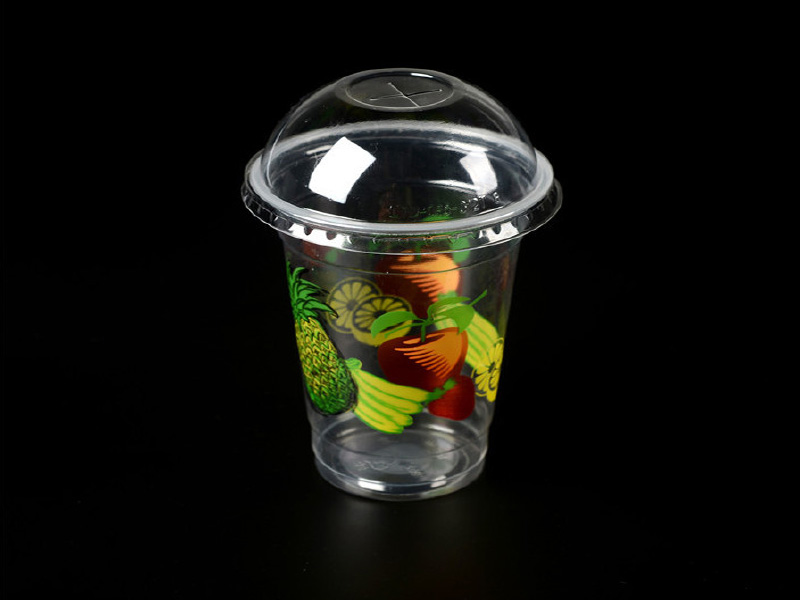

Product Application

Subtitle Description
