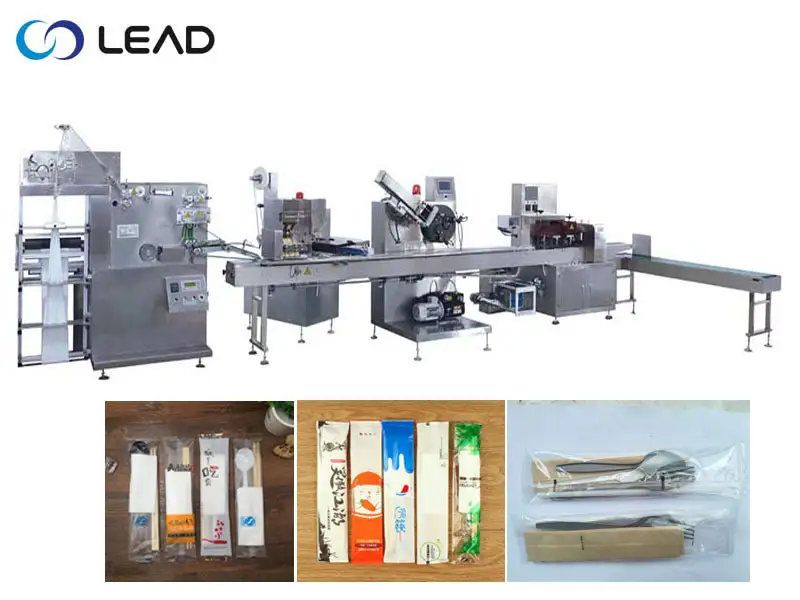

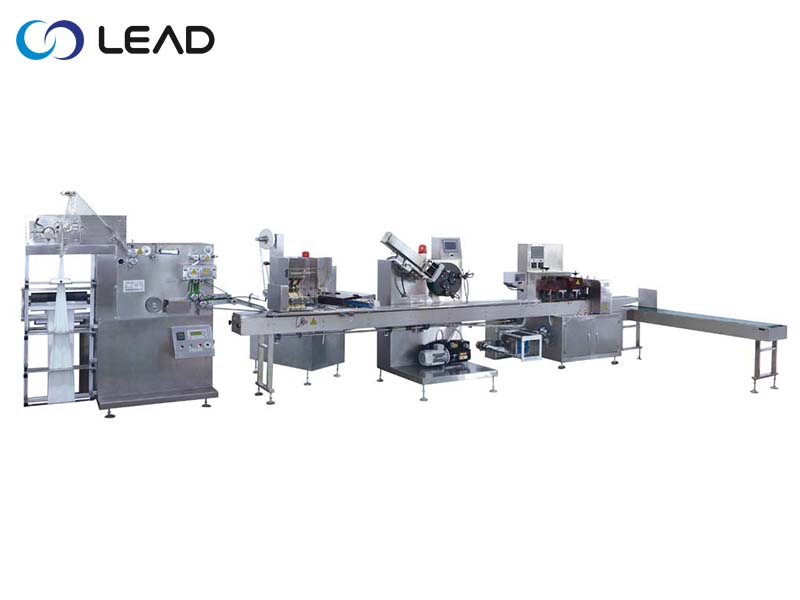

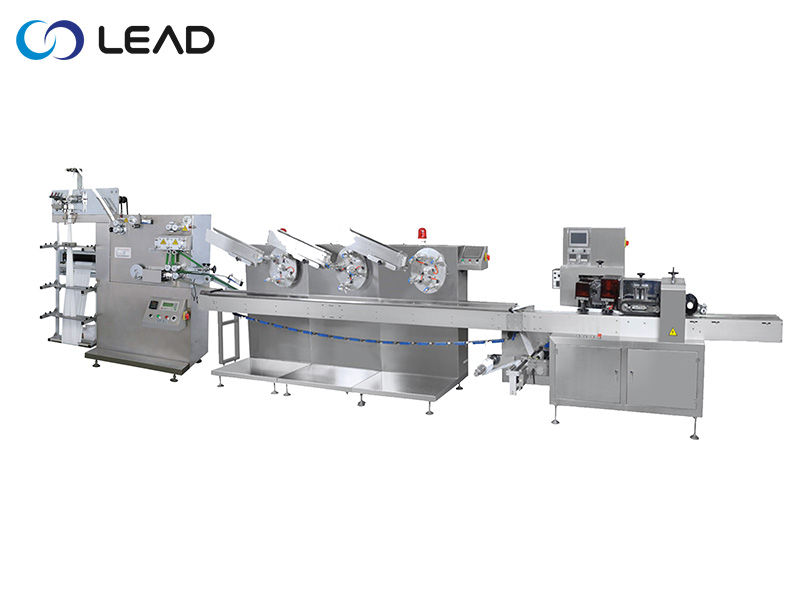

Disposable tableware /cutlery kit wrapping machine
LD-FP Automatic feeding&packaging machine for tableware kit
This automatic packaging line is automatic feeding products and wrap in a package. It can wrap 1 to 9 products, tissue, toothpick, salt&pepper, wet tissue, straw, spoon, fork, knife, etc.
Welcome to inquire about automatic napkin wrapping machine price, we are the best choice of tableware package packing line manufacturers.
Technical Features of napkin wrapping packaging machine
This napkin wrapping packaging machine is designed for napkin packaging. It is an institution, smooth operation, fast speed and can automatically finish: paper napkin folding→ automatic spoon feeder→ automatic fork feeder→ automatic knife feeder →pillow bag forming→products output and so on many features.
1. Panasonic PLC, Delta servo motor driving system are for automatic cutlery feeder for cutlery machine and packing machine, which are more intelligent and more stable performance.
2. All the parts directly touching products are made of stainless steel 304 up to GMP and IFS.
3. The whole automatic cutlery packing machine is up to 120 bags/min in long term stable run.
4. The automatic spoon feeding system has more stable performance and longer service life, compare to other horizontal reciprocating type feeding system.
5. The cutlery loader can be customized according to product size and shape. When the cutlery has little difference, they can be load on the same magazine. When big difference, you just need to change magazine.
6. The cutlery packaging machine has special sealing system. It can make a slim air hole, which can help to leak out the air in the bag. It can save space for later bulk package.
7.This disposable cutlery machine can be equipped with date printer, used for the printing of produce date on bag, the printing position can be adjusted freely on bag.
Technical Parameter
| Item | LD-FP250 Automatic feeding and packing machine |
| Paper roll | Width 100-400mm, Out diameter<900mm, Density: single layer 23-25gsm, double layer 15-16gsm, 3 layer 14-15gsm. |
| Napkin folding No. | Widthways: ‘Z’ type, 3 foldings, or ‘M’ type, 4 foldings, 3-8 foldings Lengthways: Folded in half. |
| Napkin size | Folded 25-80mm wide, 60-200mm long. Unfolded napkin 100*100mm ~ 400*400mm. |
| Wrapping film Material | BOPP, Paper laminated film can be heat seal |
| Wrapping film roll | 300mm / 20-25 microns thickness |
| Bag-making Size | (L)60-300mm (W)30-100mm(H) 10-40mm |
| Packing Capacity | 80-120 bpm (It depends on the film heat sealable performance, cutlery feeding condition.) |
| Vacuum pump | 0.8Mpa |
| Power | Napkin folding&cutting&feeding machine 1.0Kw with embossing&printing device 1.0Kw Straw feeder 1.0KW Toothpick wrapping&feeding machine 2.5KW Auto salt feeder 1.0KW / Auto sugar feeder 1.0KW/ Salt wrapping machine 1.0Kw Spoon auto feeder 2.5KW, Fork auto feeder 2.5KW, Knife auto feeder 2.5KW Wet tissue feeding machine 1.0Kw Flow packing machine 2.5Kw, with collection conveyor 0.5KW Date printer 0.4KW AC 220V 50/60HZ, Total |
| Overall Dimension&weight | Napkin machine 1.97*1.62*2.2M G.W. 1100KGS Straw feeder 0.6*0.4*0.5M G.W. 200KGS Toothpick wrapping&feeder 1.82*0.8*1.8M G.W. 350KGS Salt/sugar feeder 1.27*0.67*1.85M G.W. 1100KGS Salt packing&rewinding machine 1.0*0.78*1.85M G.W. 250KGS 3 combined cutlery feeders(for spoon, fork, knife) 3.27*1.15*1.95M G.W. 1150KGS Wet wipes feeder 0.87*0.92*1.55M G.W. 160KGS Conveyor 3.77*0.57*0.55M G.W. 130KGS Packing machine 2.44*0.97*1.65M G.W. 750KGS |
Product Application
Cutlery Packing Machine is an automatic operation pillow packing of cutlery items. Easy to handle and operate equipped with all contact parts of stainless steel.China cutlery packing machine can be used for packing disposable cutlery products, including napkin, spoon, knife,
fork.Application of cutlery wrapping machine:Suitable for the packing of products with irregular specification and multi-pieces or soft products such as medical pipette, sponge, ice-lolly, plastic fork, plastic scoop/spoon, mouth mask, towel, ice cream, popsicle/ice-lolly, woolen brush,
glove, plastic tableware and toothbrush etc.
