Battery Packing Machine

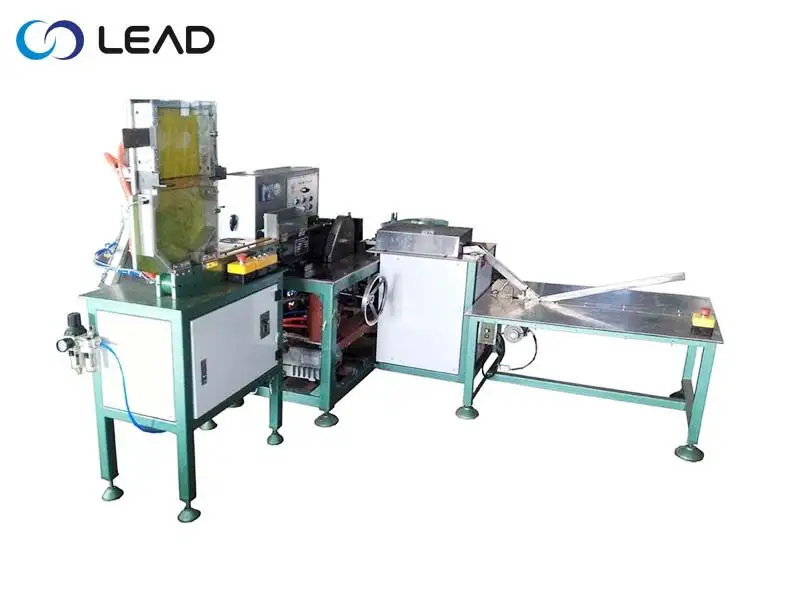

LD-BW battery package machine
The packaging machine is special designed to automatic loading battery, conveying, wrapping, shrinkaging in a whole packaging line.This high speed shrink wrapping machine is specially for various model of battery. Different to traditional sleeve wrapping type with PVC film,it is full sealed wrapping with POF film,which is more prevalent packing type.
Technical Features
1. Intelligent computer controller. Packing length can be preset and cut precisely, saving time and film compare to POF full wrapping.
2. Automatic feeding system.You just only pour a container of battery into feeder’s hopper. Machine can feed one by one automatically.
3. Safety cover for sealing and the cutting system.
4. High speed.It can wrap max. 70 packs/min for 4 pcs
5. Automatic sleeve wrapping.The vacuum pump suck PVC sleeve roll open. The mechanical pusher 4pcs battery into film automatically.
6. High efficient shrink oven.The compacted small shrink oven is special for battery, which is more efficient.
Technical Parameter
| Film material | PVC/PET sleeve film roll |
| Film thickness | 50microns for single layer, 100microns for sleeve roll |
| Sleeve roll width | 64.5mm for AA, 55mm for AAA |
| Packing width error | +/- 1mm |
| Film length for 1 pack | for 4AA diameter + 7mm for 2AA diameter + 5mm for 10AA diameter + 8mm |
| Film roll | diameter 320mm, 3Kgs per roll |
| Packaging rate | 40 - 70packs/min |
| Power | 220V，50HZ，9.0Kw |
| Machine size(L*W*H) | Auto feeder 1.0*0.575*1.6m (0.923CBM) Wrap unit 1.16*1.07*1.27m (1.576CBM) Collecting table0.965*0.7*0.7m (0.476CBM) |

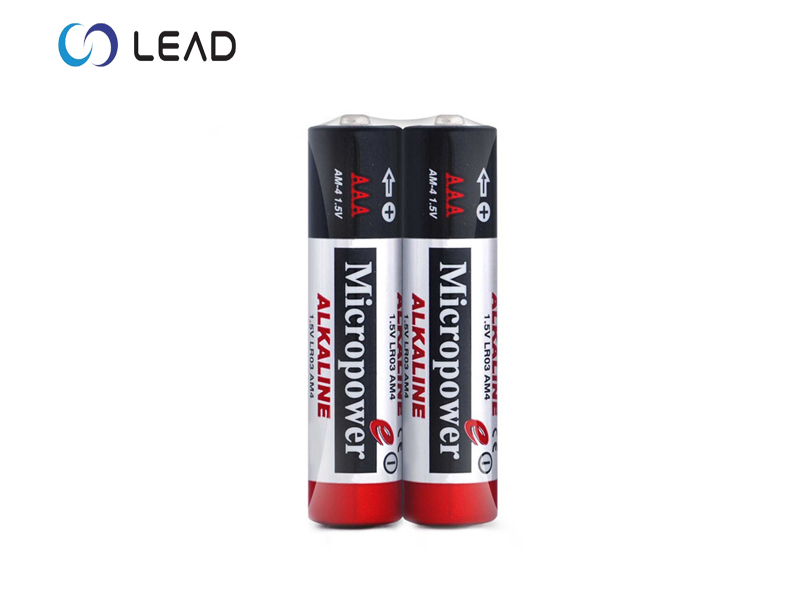

Product Application
