L-type automatic shrink packaging machine

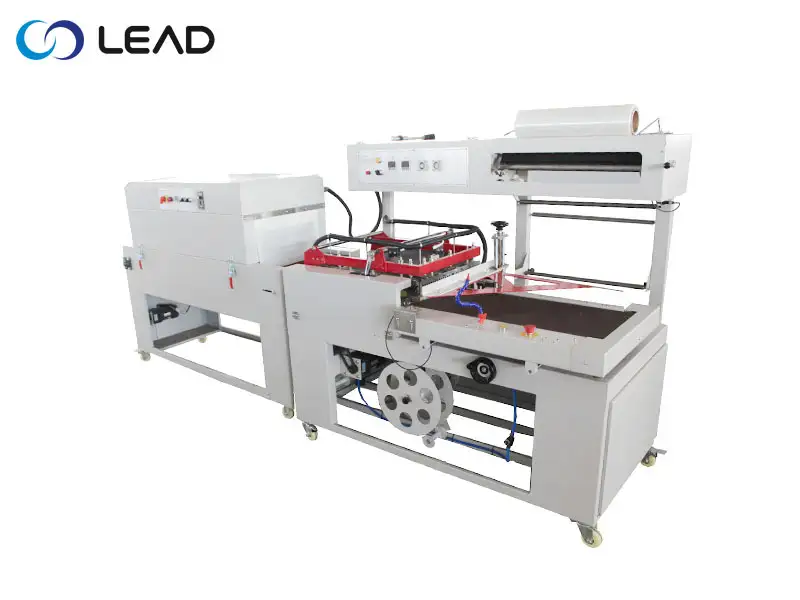

LD-LSW L type shrink wrap machine

This L type sealer and shrinkage wrapping machine with 20 pcs/min package speed is economical machine. It is suitable for big size product package.It is widely used in the assembly line of mass production and packaging, with high work efficiency, automatic film feeding and punching device, manually adjusted film guiding system and manually adjusted feeding and conveying platform, suitable for products of different widths and heights, this model can also be designed Close connection function, specially designed for packaging small products

Technical Features

1. All the products with the similar dimensions can be packaged in the same machine by adjusting the sealing position. But the min. Dimension can not be less than 80mm*80mm.

2. Intelligent microcomputer controlling system,packing length can be preset and cut precisely, saving time.

3. Safety cover for sealing and the sensor prevent cutting on the product.

4. High effective shrink tunnel oven.

5.The sealing knife is made of DuPont Teflon coated anti-stick and high-temperature alloy knife, the sealing will not crack, coking, and smoking.

6.Equipped with imported Banner detection photoelectric, one set of horizontal and vertical detection, easy to switch selection, for thin and small packages, it can also easily complete the sealing and packaging operation.

7.Automatic feeding, the length can also be adjusted automatically through the combination of the electric eye and the timer. Equipped with an induction motor to automatically wind up waste.

8.When the package size is changed, the adjustment is very simple, no need to change the mold and bag maker.

9.Using the original "OMRON" digital temperature controller, built-in PID function, the temperature of the sealing knife is sensitive and can be set at will, without worrying about temperature damage to the product, the sealing knife itself also has an automatic protection function, which effectively prevents miscutting packaging.

10.The sealing and cutting part of the machine is equipped with a plexiglass protective cover, and has an automatic alarm function, which greatly improves the operation.

11.The specially designed upper and lower synchronization mechanism of the film can correct the deviation of the film.Easy tearing can be added according to customer requirements.

Technical Parameter

Product Application
