Wet tissue 4 side seal pouch packaging machine

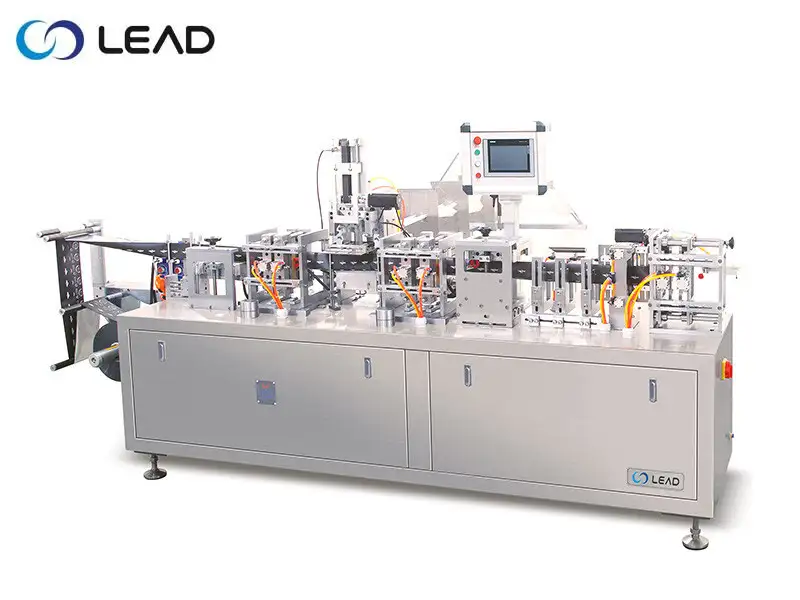

LD-WT250F Automatic wet wipe packaging machine
(single piece in 4 side seal pouch)
The whole machine adopts man-machine interface, PLC programmable control, each transmission part is independently controlled by servo motor, driven by full servo motor, the whole machine runs smoothly, it is convenient to change product specifications, and parameters can be set with one key. The machine has superior performance and high degree of automation, and is an excellent equipment for automatic packaging. We design the machine according to the world's advanced papermaking and non-woven packaging machinery technology, which is suitable for four-side sealing of wet wipes, alcohol swabs, sanitary napkins, disinfecting cloths, etc.
Technical Features
1. In the premise of same width wipe, the wet wipe length is adjustable preset.
2. Single bag or two bags connect can be set freely (Max four bags at one time for alcohol swabs).

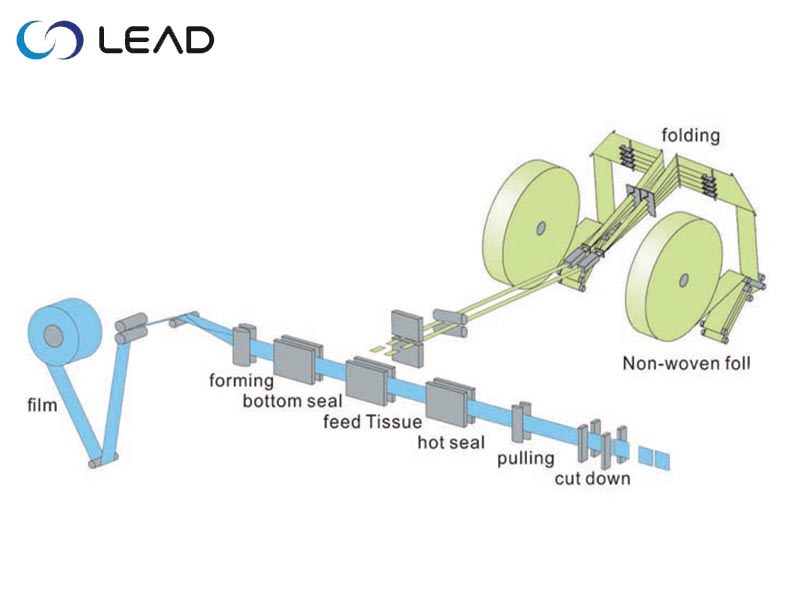

3. Full automatic pouch forming, photo electricity correction, no blank edge and fault forming
4.The tissue can be folded in different types. max 8 folding vertical, and 4 folding horizontal, fold freely by unfold non woven width, length.

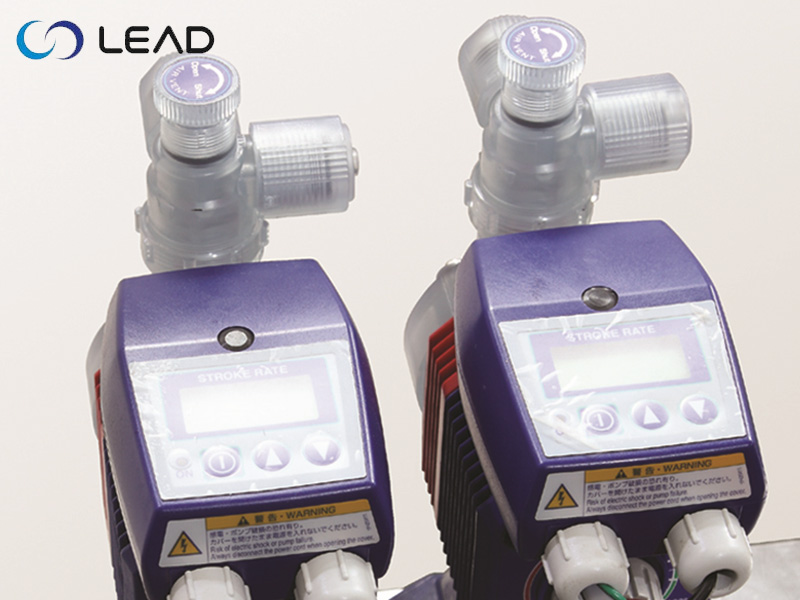

5. Adopts Japan imported spray ump, make it accurate adding with tolerance of 0.01ml/time. Multical kinds of liquid are available. it can add per liquid per bag or add all the liquid in the same bag
6. Double times sealing better to ensure the liquid adding quantity and avoid leaking.
7. The china wet tissue packing machine is easy to operate. PLC touch panel, could adjust the packing temperature and speed according to the packing material, product's thickness and length. Servo motor is controlled by light electric and air power, failures can be self-detected and displayed in the touch screen. The language of operate system can be made in your local language as Spanish, French, Korean, Russian, Japanese, Arabic and so on.
8. The full wet tissue packaging machine is covered with Stainless steel in good appearance, also easy to clear and durable. Low operation and maintenance cost.
9. The Confined glass cover, to avoid contamination, less noise.
10. The Sealing molds is made by aluminum alloy, have a very high thermal shock resistance, do not thermal deformation.
Advantages of the four side sealing wet wipes packaging machine:
1. 4 side wet tissue packing machine can greatly improve labor productivity
2. Can effectively ensure the quality of packaging
3. The four-side sealing wet wipes packaging machine can realize operations that cannot be achieved by manual packaging, such as vacuum packaging, inflatable packaging, skin packaging, isobaric filling, etc.
4. The four-side sealing china wet wipe packaging machine can reduce labor intensity and improve working conditions
5. The china four-side sealing wet wipes packaging machine is beneficial to the labor protection of workers
6. Four-side sealing china wet wipe packing machine can reliably ensure product hygiene
Technical Parameter
| Item/model | LD-WT250 |
| Packaging form | Horizontal Four-side sealing/ three side sealing |
| Packing material | CPP,PE,BOPP, PE+OPP,PET+Aluminum+PE, Paper+PE+aluminum foil+surlyn film specially for alcohol pad. |
| Wet Tissue Material | 30-80g/m2 air laid paper, nonwoven, spun lace nonwoven fabric etc |
| Folding way | Max 10 folding vertical, and 4 folding horizontal |
| Packing specification | Length: 40mm-125mm width:40mm -110mm |
| Inner size(unfold tissue) | Length: 40mm-220mm width:40mm -240mm |
| Packing speed | 80-140 bags/minute |
| Liquid added range | 0-10ml [precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp)] |
| Total power | 2.8KW |
| Power supply type | Single phase two wires 220V/ Three phase four wires 380V 50/60Hz |
| Machine noise | ≤64.9dB(A) |
| Air supply | 0.6-1.0 Mpas |
| Air consumption | 300-500L/min(w-1.0/10 air compression machine is needed) |
| Machine dimensions | L2800×W2800×H1800mm |
| Machine weight | 1100Kg |
| Package size | Plywood cases 3160*1080*1700mm (Take apart to 2 parts fill in one case) |
Product Application
Application of wet wipes packaging machine:
Producing and packing all kinds of mobile wipes, including baby wipes, disinfectant wipes, hand washing wipes, kitchen cleaning wipes, makeup remover wipes, alcohol wipes, pet wipes, wet toilet paper, etc.;
wet wipes produced by wet wipes manufacturing machine application in hotels, guesthouses , restaurants, beauty salons, gyms, entertainment venues, airports, hospitals, families, it is the ideal health and environmental protection products.
