Paper cup forming machine

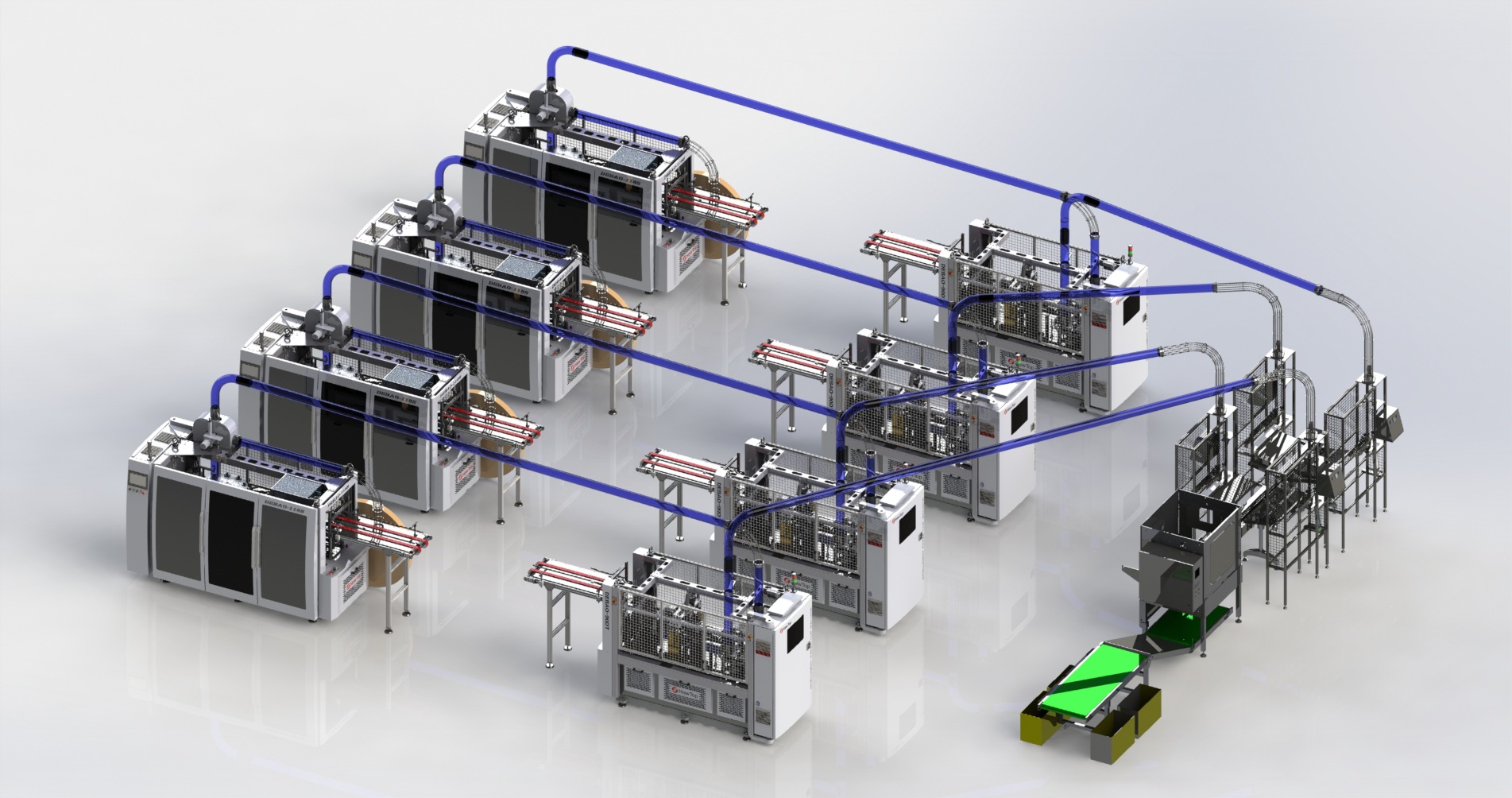

Name: Paper cup forming machine
Uploaded: 2022-06-23T09:43:05+0800
Description: The automatic high-speed paper cup forming machine adopts an open intermittent indexing mechanism, gear transmission, and longitudinal axis structure, so as to reasonably distribute various functional assemblies.

2022-06-16

The automatic high-speed paper cup forming machine adopts an open intermittent indexing mechanism, gear transmission, and longitudinal axis structure, so as to reasonably distribute various functional assemblies.

The automatic high-speed paper cup forming machine adopts an open intermittent indexing mechanism, gear transmission, and longitudinal axis structure, so as to reasonably distribute various functional assemblies. The cup-making process is controlled by PLC, using photoelectric eye to monitor the whole fault, servo feeding, thereby improving the performance of the equipment, achieving fast and stable operation, realizing the automatic shutdown of the fault, reducing the labor intensity of the workers, and improving the safety and stability of the equipment. By simplifying the cup making process, paper feeding, gluing, bottom feeding, cup loading, heating, roll bottom, knurling, roll opening, cup unloading, detection, automatic counting and receiving cups are integrated, up to 90 pcs/min.

FEATURES

1. Three times of paper feeding and multiple adjustments to avoid unevenness on both sides of the paper cup.
2. The ultrasonic welding system is adopted to increase the heat dissipation and speed up the cooling, so that the paper cup machine can maintain a proper temperature during operation.
3. The encoder and the light eye control the machine at the same time, one fan piece is matched with one cup bottom to avoid waste, fault alarm, and automatic shutdown.
4. The inside of the machine is connected by a sheave, and all parts are tighter, it is not easy to loosen during the operation of the paper cup making machine, and the work is more accurate.
5. The equipment adopts the direct bottom-feeding method, which can be done in one step to avoid turning over the bottom.
6. Guided by the conveyor belt, the waste paper is discharged to avoid the waste paper being transferred into the machine when the machine is running, which is not easy to clean and affects the normal operation of the machine.
7. Using PLC control to improve intelligence, the stroke is more precise and accurate, and labor is reduced.
