Straw wrapping machine

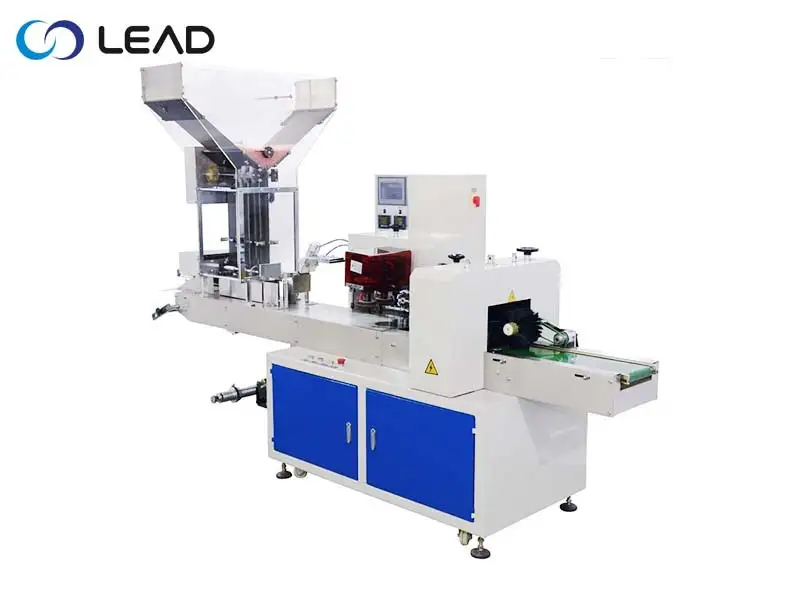

LD-SP450 Straw counting & packaging machine

This machine can automatic count straw in a preset quantity and package with OPP/PLA bag. This is available for straight straws and flexible straws

Paper straw wrapping machine works in the following way.

Paper Unwinding:Paper unwinding is the first process of straw wrapping machine. It unwinds the large roll of paper material and cuts into shorter pieces according the required length.For cutting purposes, sharp cutters are pre-installed in the machine which automatically cut the paper in the required size.

Auto Filling:In the next step the machine auto-fills the tank with water-based glue. The winded paper sheets are now dipped into the glue tank for further process.

Auto Sealing:There is an auto-sealing system in your straw packaging machine that seals the straw into the packaging.

Auto Counting:For you ease, the machine counts the number of packed straws. This feature reduces the individual labor, human errors, and saves time.

Alarm System:The straw wrapping machine has an automatic alarm system that notifies you either if it is working adequately, or if there is some ill-functioning in the machine.

Adjustable Speed:Your paper straw packaging machine has an adjustable speed system. This system lets you set the speed of machine according to the number of straws you want to pack in a minute.

Easy-To-Operate:This automatic paper straw packaging machine has an easy-to-operate system. It has touch screen features which make the machine easier to operate. Moreover, it gives manual guides and assists properly in case of any emergencies. In this way, the whole process becomes easier.

Fully Automatic:Investing money in buying paper straw wrapping machine is worth it because of its automatic system. All of its features operate without manual aid which is both cost-effective and enhances the business growth.

Technical Features

1. Panasonic PLC, Delta servo motor driving system are more intelligent and stable.

2. The parts directly touching products are made of stainless steel 304 up to GMP and IFS.

3. The whole automatic paper straw packing machine is 10-25 bags/min.

4. The automatic feeding system is adjustable in a small size scope. 6cm-8cm straws can be feeded on the same machine.

5. The automatic counting system is controlled by separated servo motor. Any quantity can be preset on the touch screen.

6. The needling on the wrapping bag can help to leak out the air in the bag. It can get a compact package, and save space for later bulk package.

Straw packing machine are used to packing drinking straws in three sides sealing bag, printing function is available when using paper as packing material.
Characteristics:
1) With automatic product counting function, product quantity may pre-set, once the pre-set value is reached.
2) Packing straw length is adjustable within a certain range.
3) Printing, feeding, and packing can complete in one processing.

Technical Parameter

Product Application

The straw packaging machine can be applied to packing different diameters, length drinking straws. Automatic packing paper feeding, optional packing paper printing, straw packing, sealing, cutting are realized on 1 machine.

In a word, automatic straw wrapping machine has a high degree of automation and packing speed. 写点什么 ...
